Overview of Primer’s Vault

Looking to migrate your existing saved payment methods to Primer? Check out our token migration guide

​
Securely store payment method information

Primer’s Vault is a centralized PCI-DSS Level 1 service you can use to store the details of a customer payment method in a unified way. Sensitive payment data is stored as a secure multi-use paymentMethodToken that enables:
  • recurring merchant-initiated payments
  • a seamless one-click experience for your customers with Universal Checkout
Each paymentMethodToken is paired with a customerId which uniquely identifies identify a customer. You can use any unique identifier for this such as a UUID or an email address. This customerId is required for:
  • generating a client session to allow Universal Checkout to present your customer’s vaulted payment data for one-click checkout
  • creating a payment request using vaultOnSuccess to save the customer’s payment data once it has been successfully authorized
  • managing stored payment data with the Payment Methods API to allow customers to add and delete vaulted payment method data from your site or app

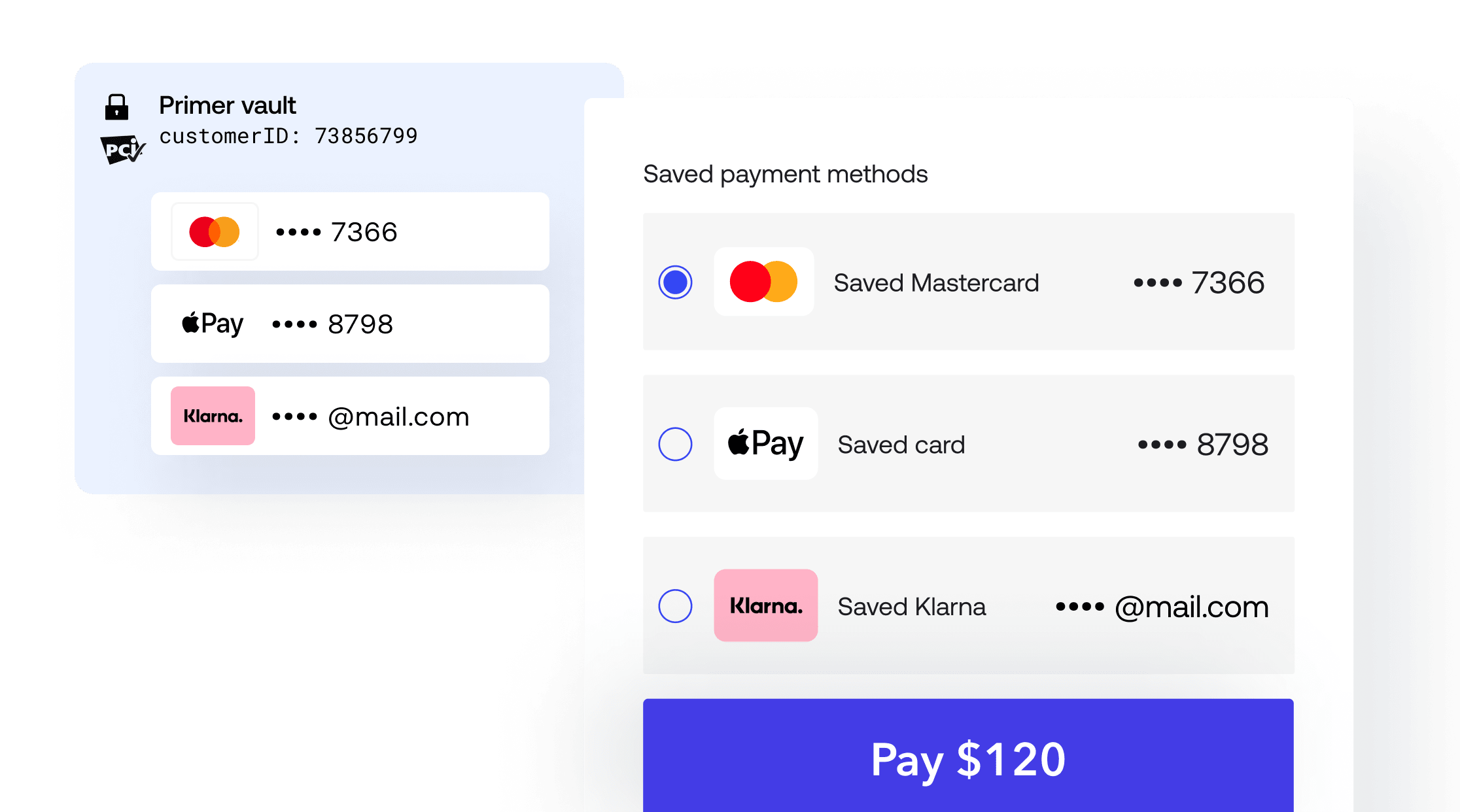

Primer's Vault

​
Intelligently optimized for auth rate approval

We’re fanatical about improving payments success. Primer will intelligently store data returned from your underlying processors to ensure the highest likelihood of success for recurring payments. This includes SCA authentication data as well as other data returned from card schemes and acquirers.

​
Add payment methods to the vault

Not all payment methods can be added to Primer’s centralized vault. Refer to our payment method guides to know more about the capabilities of each payment method.
Vaulting a payment method starts by capturing the payment method credentials using Drop-In Checkout or Headless Checkout. You will then encounter two distinct behaviors:
  • Vault the payment method directly after the user has completed the payment method flow
  • Vault after a successful authorization

​
Vault directly

To vault a supported payment method directly, additional options have to be passed to the SDK. Check the payment method guides to properly configure the Drop-in Checkout and Headless Checkout to vault each compatible payment method.

​
Vault after a successful authorization

For card-based payment methods (Cards, Google Pay and Apple Pay), it is recommended to vault after a payment has been successfully authorized. This ensures the card is valid and is suitable for making payments. Primer supports this flow out of the box using the paymentMethod.vaultOnSuccess flag in the Client Session API or the Payments API. When this flag is set to true, and if the payment method supports it, the payment method credentials are automatically added to the vault once the payment is successfully authorized. Make sure to also pass customerId to specify the customer’s vault this payment method should be added to.

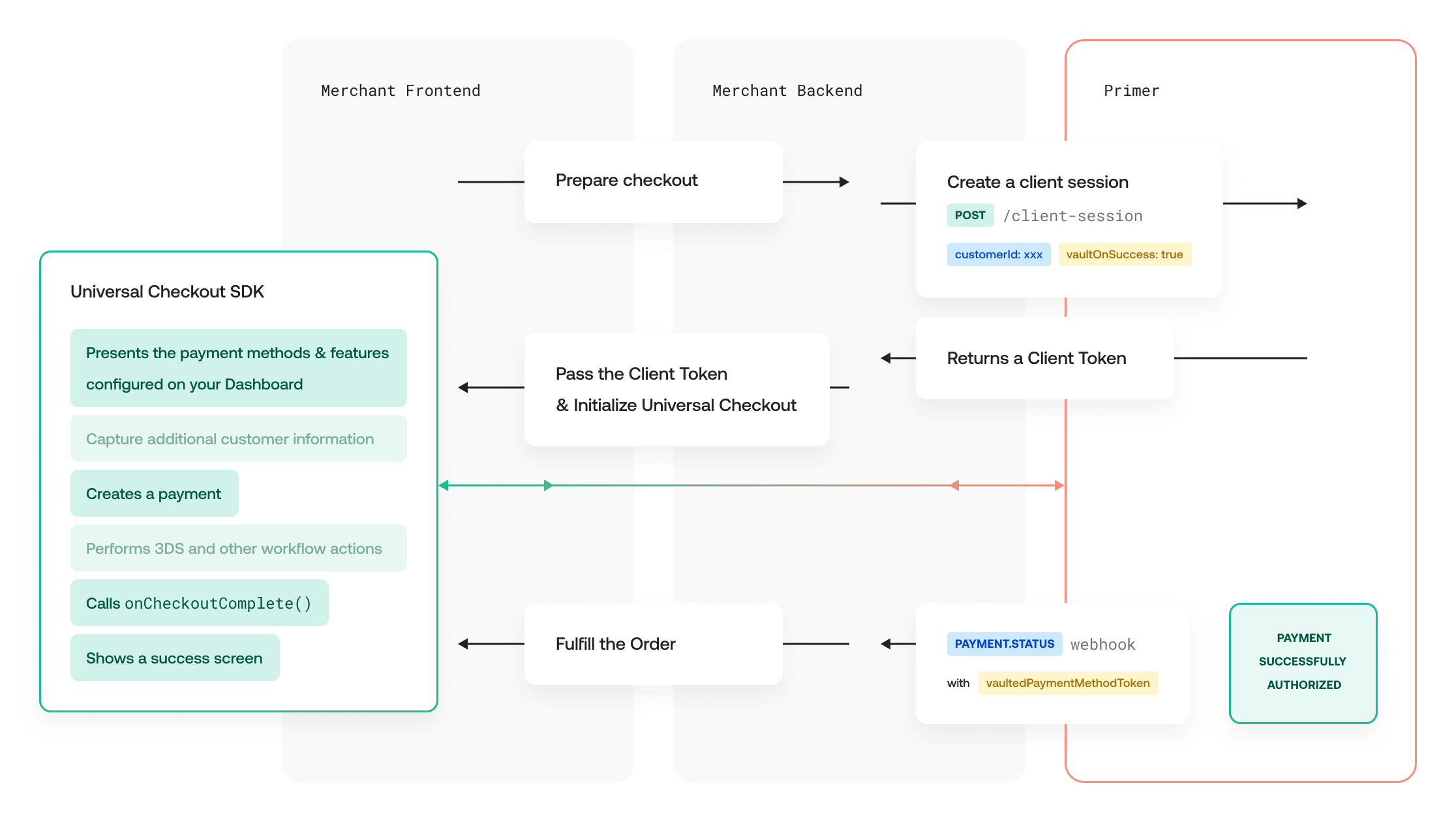

Vaulting Token Flow

​
Make payments with a vaulted payment method

​
Simplify the drop-in payment flow

Vaulted payment methods appear automatically on the drop-in checkout if customerId has been provided in the client session and the customer has vaulted payment methods stored with Primer. This enables your customers to seamlessly pay with one of their saved payment method. We recommend to set paymentMethod.paymentType to ECOMMERCE in the client session or payment request. This ensures the right data is sent to the processor to maximize the authorization rate.

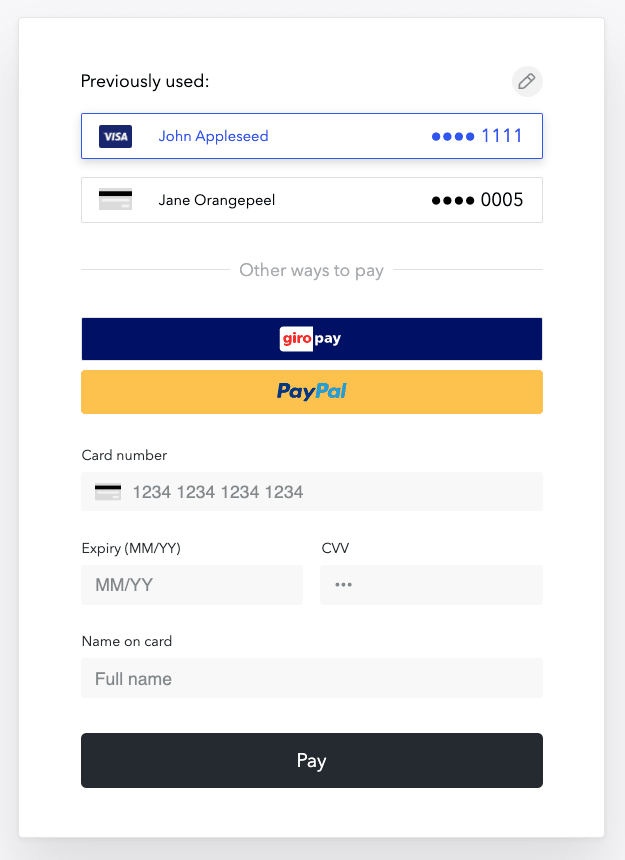

Universal Checkout Vault

​
Recapture the CVV of saved cards

PCI standards prevent entities like Primer from storing the CVV of a card when saving the card credentials for future payments. This means that subsequent card-on-file customer-initiated payments are always processed without the CVV. Although Primer sends the relevant parameters to tell each processor when a card-on-file payment occurs, some processors or issuers have a lower authorization rate when the CVV is not provided. To increase the chances of payment success, Primer enables you to ask the customer to re-enter the CVV of the selected saved card before processing the payment.

​
Enabling CVV recapture on Drop-in Checkout

Include the captureVaultedCardCvv option within the PAYMENT_CARD payment method options in the POST /client-session request. When set to true, this flag activates the CVV recapture functionality in the Drop-In implementation, providing an out-of-the-box solution for transactions with vaulted payment cards. Example Request:
JSON
POST /client-session
{
  "paymentMethod": {
    "options": {
      "PAYMENT_CARD": {
        "captureVaultedCardCvv": true
      }
    }
  }
}

​
Create merchant-initiated payments

You can use the Payment Methods API and the Payments API together to create merchant-initiated payments with a saved payment method.
  1. First, make a call to to get the list of payment methods tied to a customerId. Each entry in the list contains a token representing the payment method token to use to create a payment.
  2. Then, create a payment by calling . In addition to the required fields for creating a payment, pass the following data:
Parameter NameDescription
paymentMethodTokenThe vaulted payment method token
paymentMethod
↳ paymentType		Type of payment.
Used to improve conversion.
  • SUBSCRIPTION if the payment is part of a series of payments on a fixed schedule and a set amount
  • UNSCHEDULED if the payment is not following a fixed schedule or amount

​
Manage vaulted payment methods

​
With the Payment Methods API

The Payment Methods API lets you interact with the vaulted payment methods for all your customers. Use the Payments API to:

​
With Drop-in Checkout

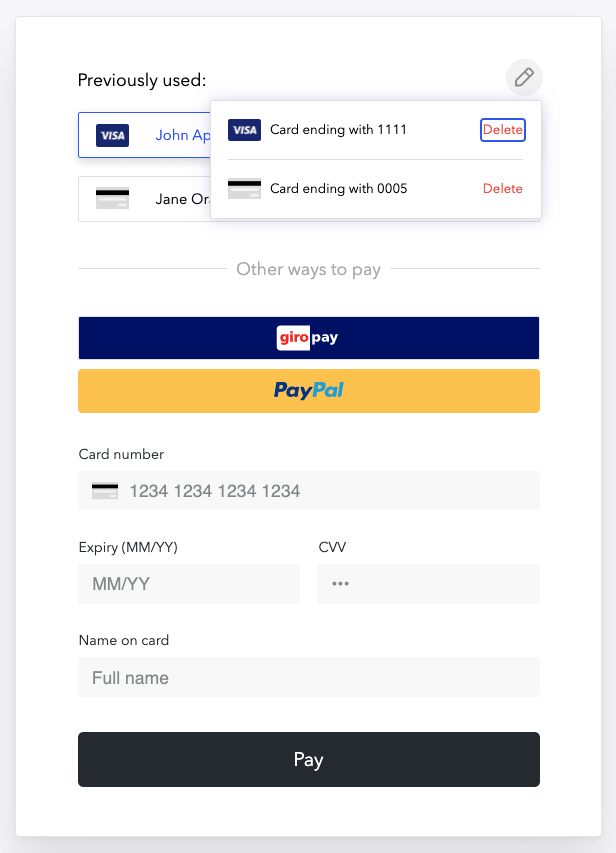

When using Drop-in Checkout, customers have the ability to remove any of their previously vaulted ones.

Universal Checkout Vault
