API Version 2.4 will be released on February 5th 2025, bringing key improvements to payment processing, timeout management, and refund capabilities. This migration guide provides a detailed overview of the changes, their impact, and best practices to ensure a smooth transition.

Use this guide alongside our full API reference documentation while preparing to upgrade, and please don't hesitate to contact Primer Support if you need assistance.

General Requirements

This version includes improvements to the Client Session API, Payments API and the Payment Methods API. You must set the X-Api-Version header to 2.4 to use v2.4 of the API.

SDK Requirements

To test API v2.4 you must opt-in to use the specific version within the Checkout SDKs.

Web

Available in Web SDK v2.48.0 and later. To use API version 2.4, use the UniversalCheckoutOptions.experimental object when initializing the checkout.

12345678910111213141516171819202122

await Primer.showUniversalCheckout(clientToken, {  container: '#container',  experimental: {    'api-version-2.4': true,  },});
await Primer.createHeadless(clientToken, {  experimental: {    'api-version-2.4': true,  },  onAvailablePaymentMethodsLoad(methods) {    console.log('Available payment methods:', methods);  }});
await Primer.showVaultManager(clientToken, {  container: '#container',  experimental: {    'api-version-2.4': true,  },});

iOS

Available in iOS SDK v2.34.0 and later. To use API version 2.4, set the apiVersion to v2_4 in your PrimerSettings before initializing the checkout.

1234

let settings = PrimerSettings(    ...    apiVersion: PrimerApiVersion.v2_4)

Android

Available in Android SDK v2.35.0 and later. To use API version 2.4, set the apiVersion to v2_4 in your PrimerSettings before initializing the checkout.

1234

val settings = PrimerSettings(    ...    apiVersion = PrimerApiVersion.v2_4)

Payment Types

Our paymentType field is used to send the correct information to processors for payment method storage, recurring and credential-on-file payments.

In API V2.4 we have changed the way this field is calculated and also upgraded the underlying logic to be more accurate and intuitive.

For your own records and workflow logic, we recommend you pass a paymentType based on the type of payment flow. However, if you do not pass one, we will assume the most likely down stream value required from context.

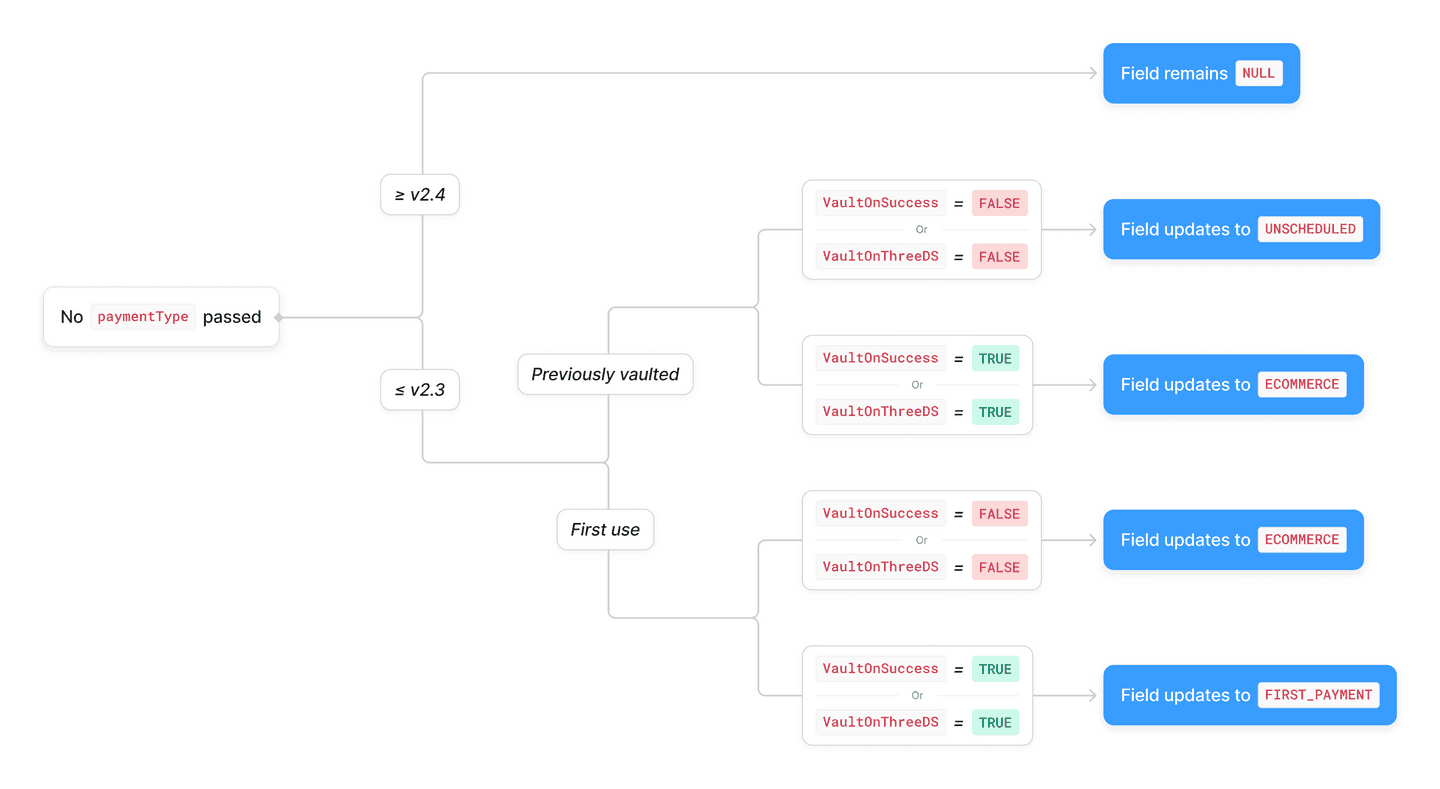

Payment Types - Main changes

If you do not pass a paymentType when creating a payment, we will no longer assign it a value. Instead the paymentType field will remain blank and our internal logic will send the best possible information to your end processor(s).

This is in contrast to previous API versions, where the paymentType was calculated based on whether the payment method had been previously vaulted and whether any intention to vault was passed.

These changes bring the following improvements:

• Resolves a known issue where payments made without a paymentType initiated by customers using a previously vaulted card were flagged as paymentType : UNSCHEDULED - these will now remain with a null paymentType value. This will also ensure that the Payment Initiation Type in the "Payment created" Trigger can be relied on to route these payments correctly.
• Resolves a known issue where one-off payments made without a paymentType were incorrectly marked as ECOMMERCE - these will now remain with a null paymentType value.
• Vaulted payment methods will be passed to the end processor with the correct processor specific fields, regardless of whether a paymentType is passed through or if the incorrect value is used.
  • This is particularly relevant when using our Drop-in, where customers can select a Vaulted payment method without the front end being explicitly notified, which can result in invalid paymentType values being used.
• Payment methods that cannot be vaulted will never be passed to the end processor with an instruction to vault, regardless of what paymentType is passed through.

Optional Parameter Addition - firstPaymentReason

An optional field has been added to the paymentMethod object, directly related to the paymentType logic:

• The object firstPaymentReason allows you to indicate why a payment method is being vaulted when setting paymentType : firstPayment, with three possible values of CardOnFile, Recurring, and Unscheduled. Pass this field if using a processor that has strict requirements on card storage.

Migration Steps for Developers

1. Check current paymentType behavior

• Ensure you’re passing the most logical paymentType when creating or patching a client session and creating a payment.

2. Check if firstPaymentReason would benefit your payments

• If you’re vaulting payment methods with paymentType: firstPayment, consider including the new parameter firstPaymentReason and setting it according to why the payment is being stored.

3. Review Workflow Logic

• Check your Primer workflows and ensure any changes do not impact your workflow logic.
• In particular, check if you’re currently using the Transaction Type input or output in your workflow routing, as this correlates to the paymentType parameter.

4. Test and Validate

• Use the sandbox environment to test your new implementation and ensure it continues to operate as expected with your Primer workflow logic and any internal requirements.

Timeout Management Improvements

We have extended our payment API timeout from 25s to 90s, with a maximum processor timeout allowance of 60 seconds. Our SDK timeout remains at 15 seconds, to limit impacts on the customer experience.

The longer timeframe allows ample time for external processors with long timeout values to respond - the average maximum timeout allowance from processors is between 60 and 70s - while also allowing any additional internal operations by the Primer engine. This will minimize synchronization issues when a timeout occurs with an external processor, ensuring you can maintain full visibility of your payments within the Primer ecosystem.

To support this change, we have added a new Decision Type of GATEWAY_TIMEOUT. This will be returned when an external processor returns a timeout error or does not respond within our maximum processor timeout allowance.

You can use this new value to implement workflow logic and monitoring specific to timeouts, as well as get a full overview of your selected processors performance within your dashboards.

Please see our timeouts documentation for more details on this change.

Migration Steps for Developers

1. Check what your own internal timeout values for Primer are set to

• If you have a timeout value shorter than 90s set on your end, you may wish to:
  • Amend it to be in line with our new values, or
  • Add additional logic if the timeout value is hit to perform a GET request for the payment status at a later time

2. Ensure the addition of a new Error Decision Type will not break your integration

• The GATEWAY_TIMEOUT value is additive, so should not break any existing implementation. However if your integration is hardcoded to the API ≤v2.3 values for Error Decision Type, or if any of your own internal logic explicitly relies on those values, you will need to update your mappings to ensure no errors occur.

3. Review Workflow Logic

• Check your Primer workflows and ensure any changes do not impact your workflow logic.
• In particular, check if you’re currently using the Error Decision Type input or output in your workflow routing, as this will now include a new option and you will need to ensure it’s accounted for.

4. Test and Validate

• Use the sandbox environment to test your new implementation and ensure it continues to operate as expected with your Primer workflow logic and any internal requirements.

Partial Captures and Targeted Refunds

We are introducing partial captures and targeted refunds to address key reconciliation and payment workflows for marketplaces. These changes enable you to:

• Refund specific items or captures without affecting unrelated payments
• Align payments with logistics and marketplace sellers, and track seller payments and performance with unique transaction capture IDs

New transactions.events in the Payment Object:

• Each partial capture generates a unique transactionEventId, used in the reconciliation file
• You can choose to receive a list of transaction events for captures and other updates, by expanding the request:/payments/{id}?expand=transactions.events

Targeted Refunds:

• When performing a refund, you can specify the transactionEventId to target the partial capture.

Note: While these changes mark an important step forward, please note that this functionality will initially be available for a limited scope and select merchants. We prioritize stability and ensure a seamless implementation for broader availability in the future.

How Partial Captures and Targeted Refunds Work

Each partial capture generates a unique transactionEventId, which is the key to track partial captures and to handle targeted refunds. This ID is included in reconciliation files and API responses.

To process targeted refunds (a refund on a specific partial capture), you need to store transactions.events.id in your system. This ID ensures you reference the right capture when making a refund.

Partial Captures and Refunds - Main changes

• Add the transactions.events array to the Payment API, within the transaction object.
• Update accordingly the GET payments, POST refund and POST capture endpoints
• Use expand=transactions.events to get transaction event details.
• Remove processorData.external_ids, including authorization_id, from API and webhook payloads.

Using Partial Captures and Refunds

Making a Partial Capture

• Every partial capture generates a transactionEventId.
• This ID is included in reconciliation files and API responses.
• To get a list of transaction events for captures and updates, use:

  1

  GET /payments/{id}?expand=transactions.events

  json

  copy

Issuing a Targeted Refund

• Include the transactionEventId in the refund request to target a specific capture.

  123456

  POST /payments/{id}/refund{  "amount": 4000,  "transactionEventId": "57a2027d-36a6-494f-ad07-a6e1d0c77772",  "reason": "Customer returned item"}

  json

  copy

Retrieving Transaction Events

• When a payment update is received, you can retrieve transaction event details:

  1

  GET /payments/{id}?expand=transactions.events

  json

  copy

Example Workflow:

• Receive a webhook for a payment update:

  123456

  {  "event": "PAYMENT.CAPTURED",  "paymentId": "7kCpGx6Kk",  "amount": 5000,  ...}

  json

  copy
• Retrieve transaction events to find transactionEventId:

  1

  GET /payments/7kCpGx6Kk?expand=transactions.events

  json

  copy

Note:

• For each Capture or Refund request, if you receive a synchronous response from the PSP, you can also expand the transaction events by including the following in your request:

  12345

  POST /payments/m002N9jDI/capture{  "amount": 400,  "expand": ["transactions.events"],  "final": false}

  json

  copy
  This allows you to retrieve additional transaction details directly within the response.

Example API Responses

Partial Capture details from a GET Payment call with ?expand=transactions.events

123456789101112131415161718192021222324252627

{  "id": "7kCpGx6Kk",  "status": "PARTIALLY_CAPTURED",  "amount": 10000,  ...  "transactions": [    {      "date": "2024-10-19T14:44:40Z",      "amount": 10000,      "transactionType": "SALE",      "events": [        {          "id": "19de9641-f085-48a8-8278-7945fb78c7aa",          "type": "AUTHORIZATION_SUCCEEDED",          "amount": 10000        },        {          "id": "c0b4946e-b3e1-4664-b563-db13491ad35b",          "type": "CAPTURE_SUCCEEDED",          "amount": 1234,          "final": false        }      ]    }  ]  ...}

Targeted Refund details from a GET Payment call with ?expand=transactions.events

12345678910111213141516171819

{  "id": "7kCpGx6Kk",  "status": "PARTIALLY_REFUNDED",  ...  "transactions": [    {      "transactionType": "REFUND",      "amount": 1000,      "events": [        {          "id": "7c136224-dd01-41fb-a5fa-cf9a5af9b704",          "type": "CAPTURE_SUCCEEDED",          "amount": 1000        }      ]    }  ]  ...}

Migration Steps for Developers

1. Update Data Handling

• Stop using processorData.external_ids in API responses.
• Use API calls to fetch transaction events instead.

2. Store transactionEventId

• Make sure your system maps transactions.events.id to internal records.
• Use this ID when issuing targeted refunds.

3. Adapt to Webhook Changes

If you were relying on web hooks to retrieve external ids, the external_id field will no longer be included in webhook payloads. Instead you now need to:

• Receive the webhook.
• Perform a GET request with ?expand=transactions.events to retrieve the processorEventId of the event, which is a replacement for the external_id field.

4. Adjust Refund Workflows

• Always include transactionEventId when issuing refunds.
• Update your reconciliation process to handle event-based refunds.

5. Test and Validate

• Use the sandbox environment to test partial captures and refunds.
• Verify API calls to ensure correct event tracking.

Parameter addition - vaultOnAgreement

The boolean vaultOnAgreement allows you to vault a payment method when an agreement mandate is concluded successfully in processors that support it. Pass this value as TRUE to store customer payment methods in the Primer Vault for future billing in payment processors that rely on Agreement flows, like ACH via Stripe.
